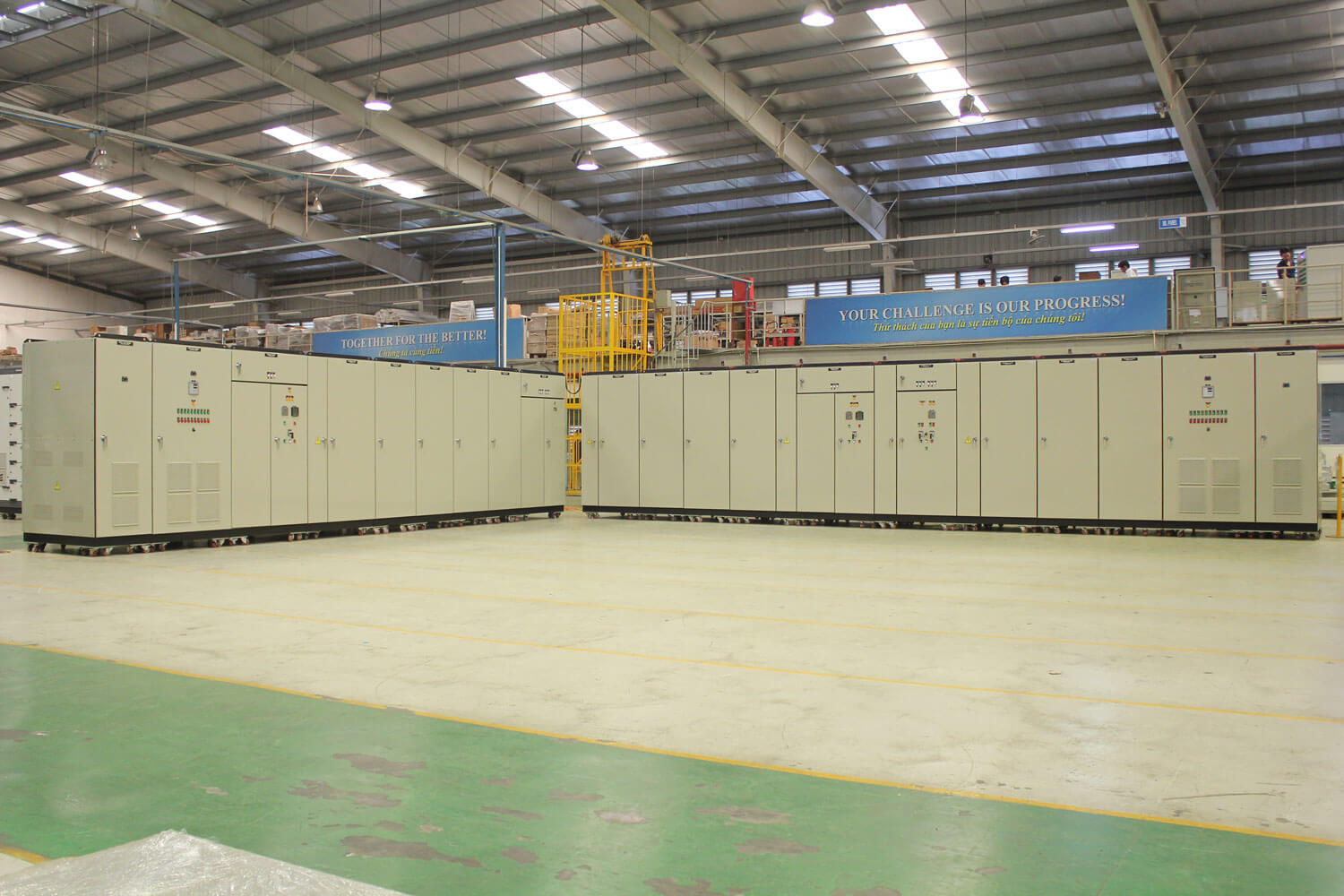

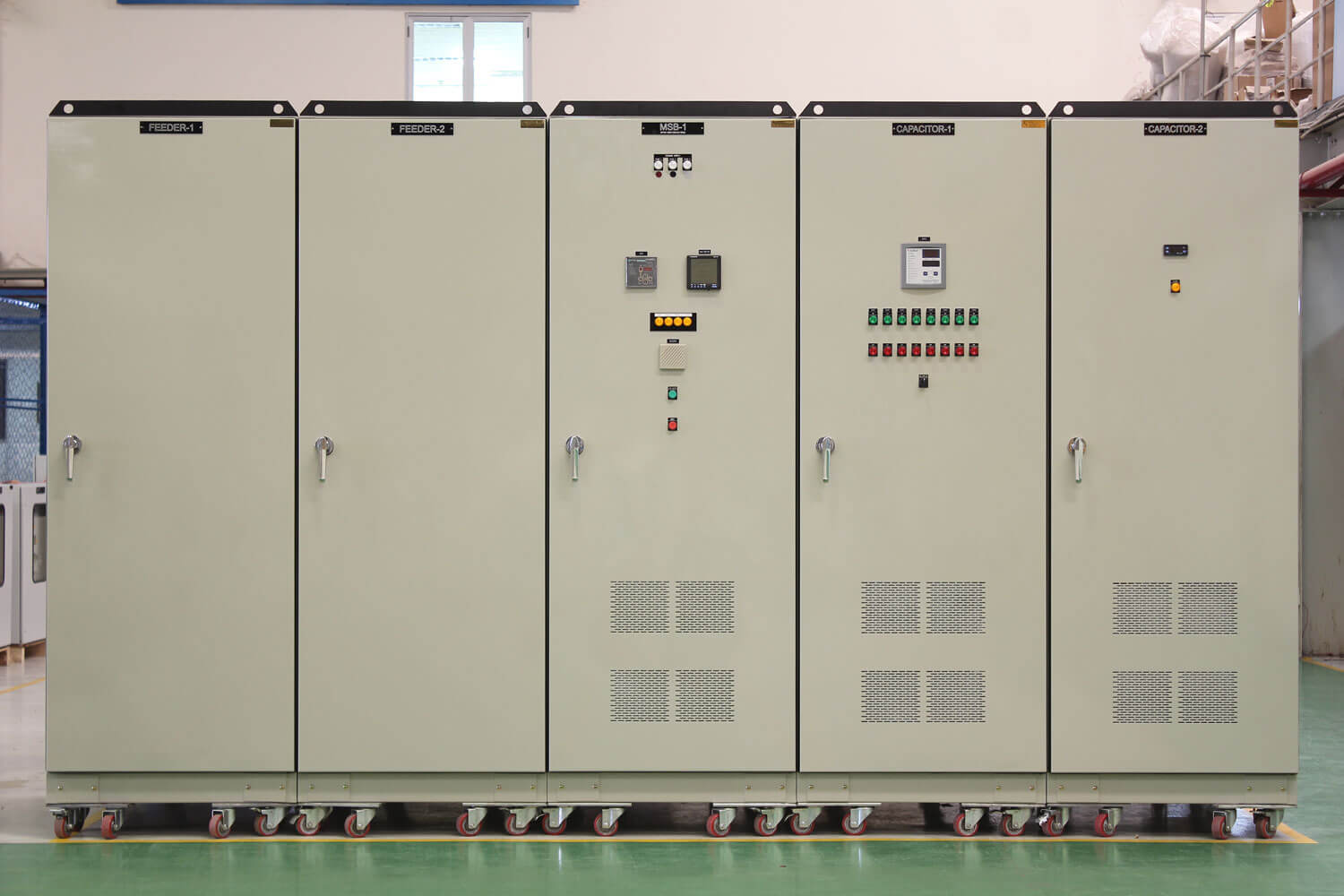

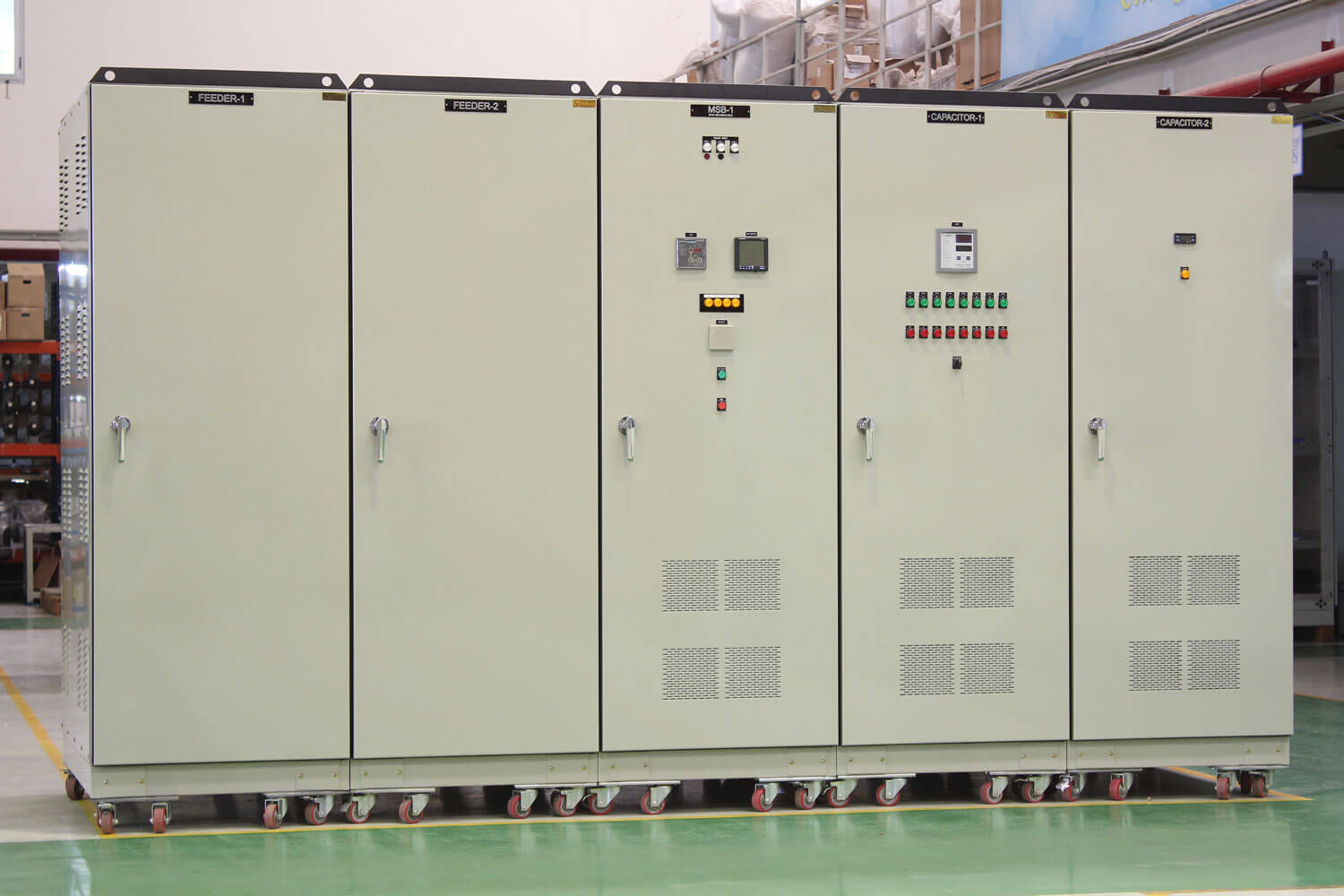

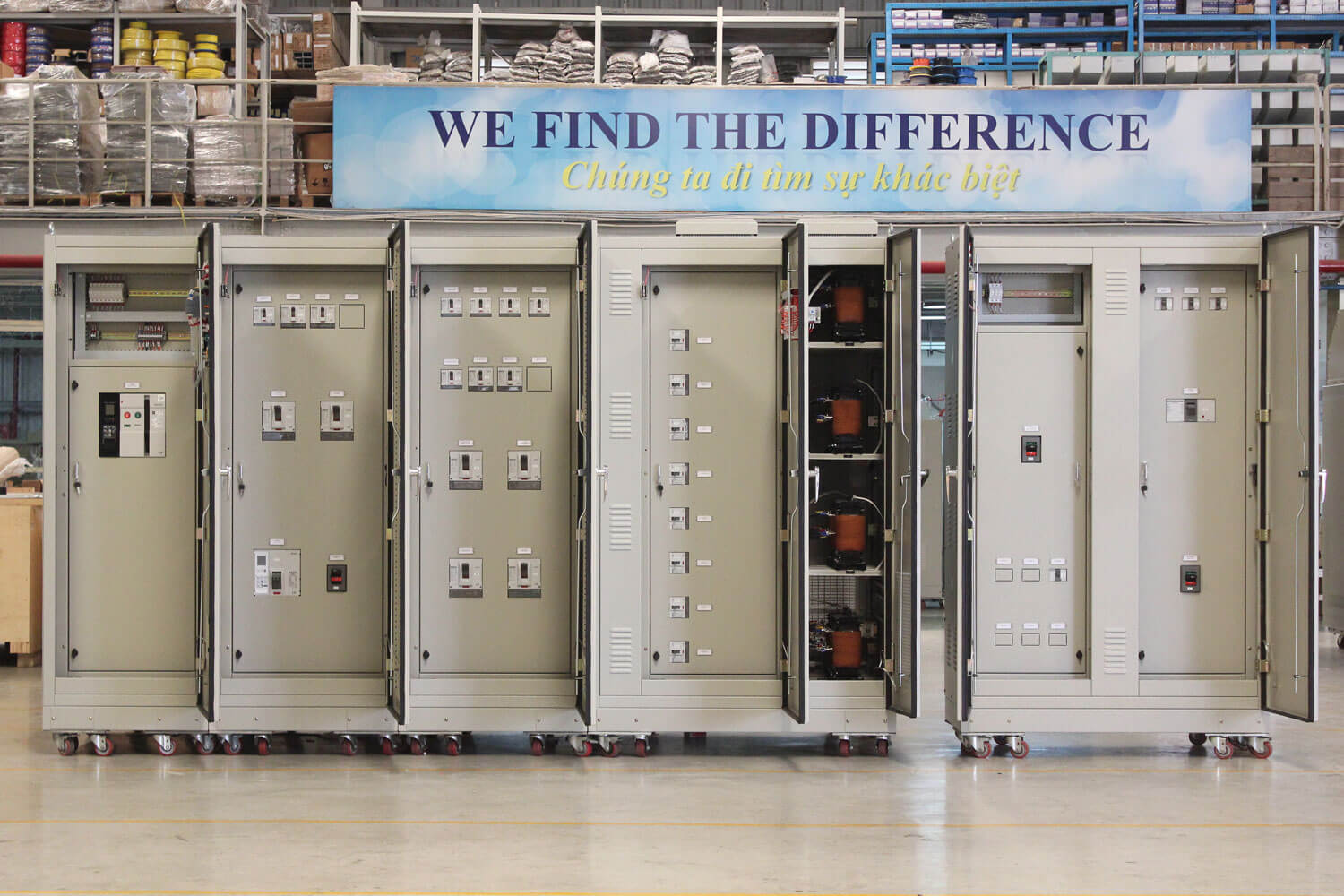

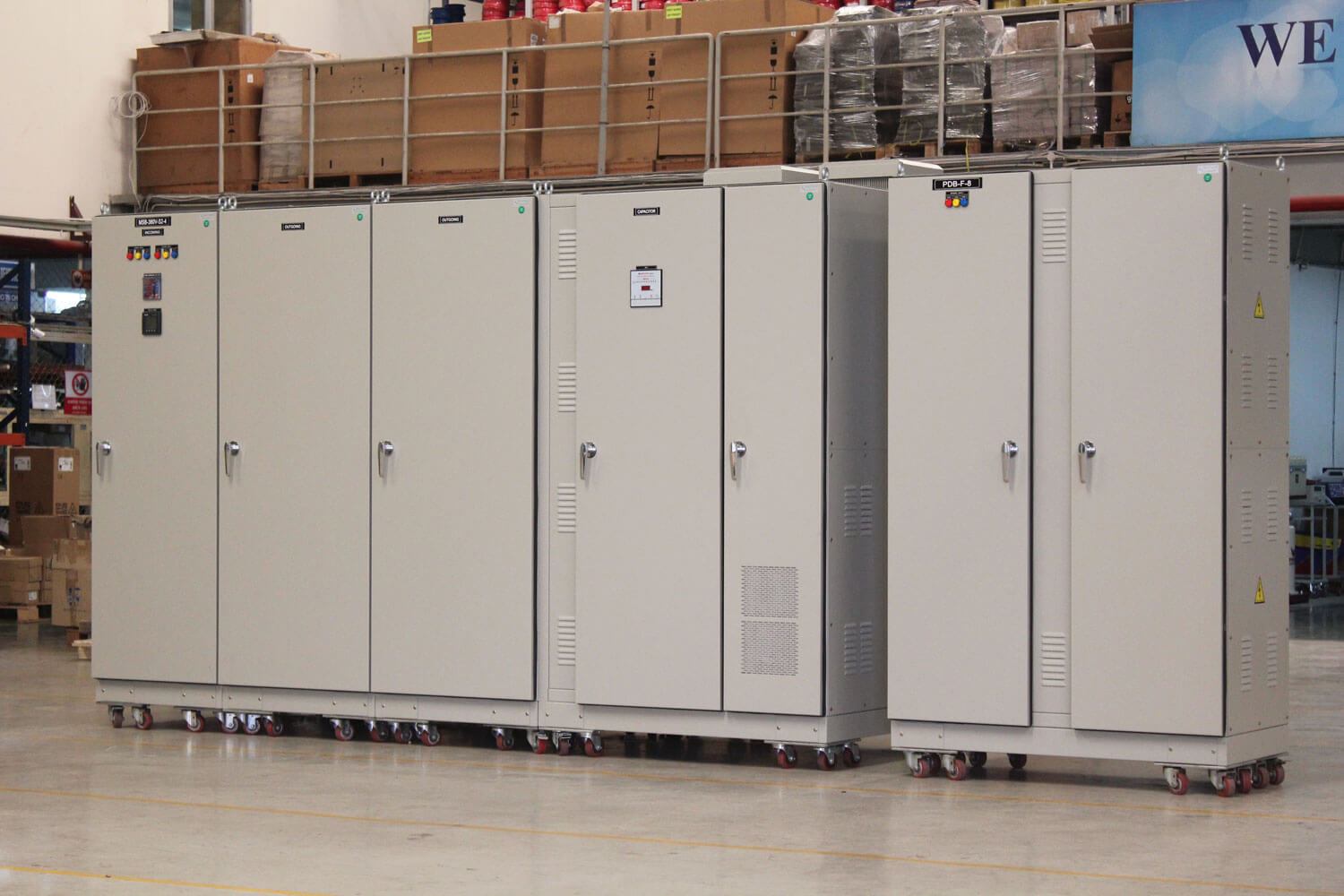

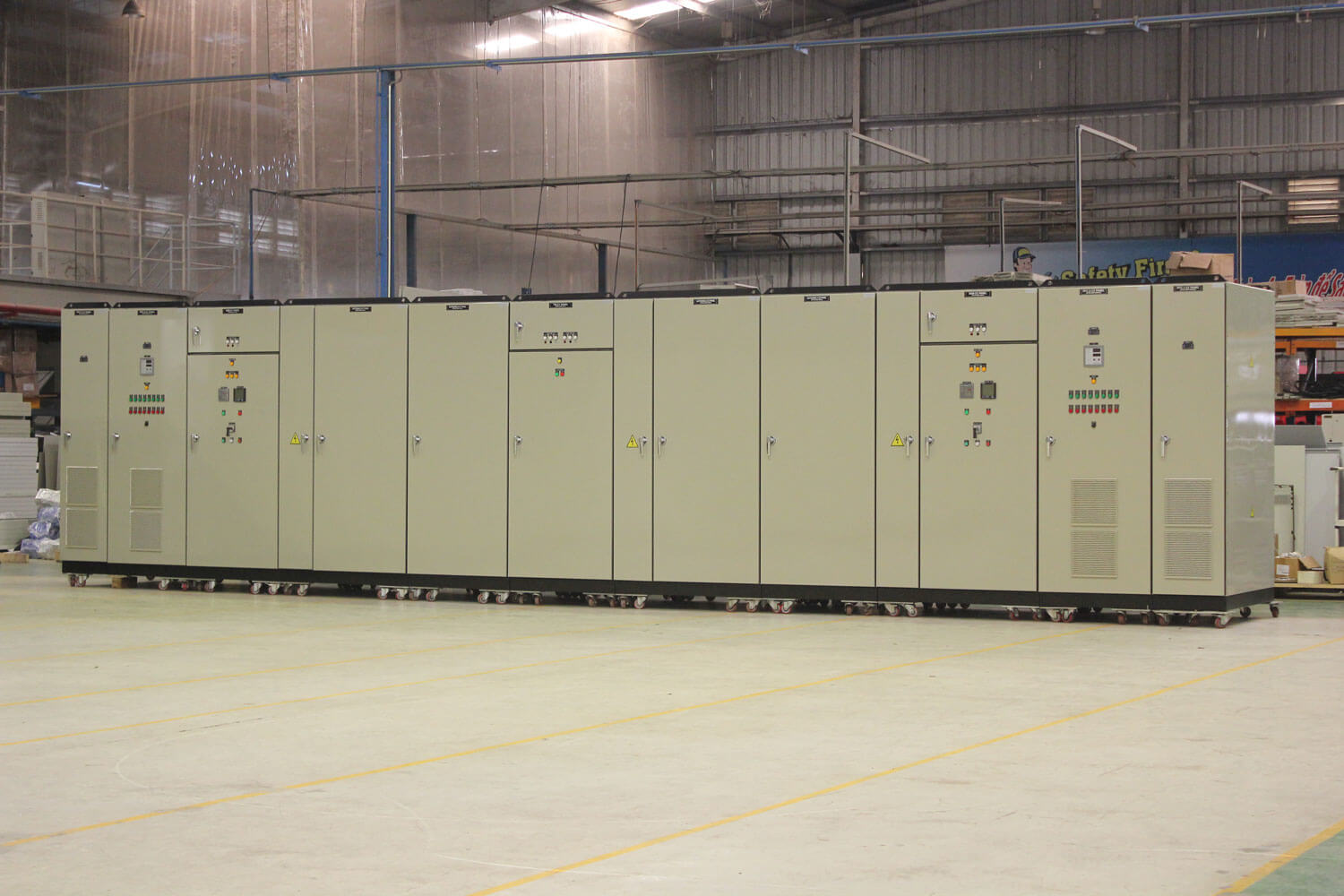

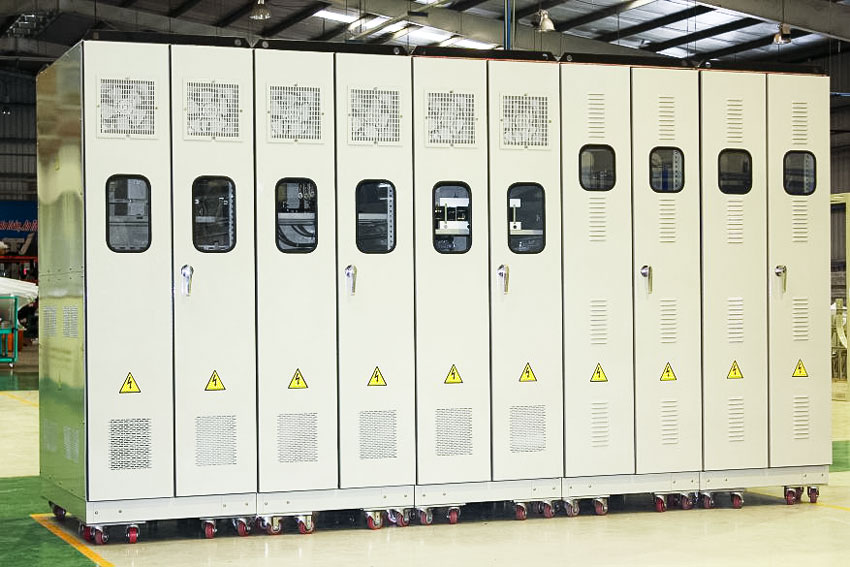

SPECTRUM PANEL

   Spectrum  Low Voltage Switchboards can be upgraded to become smart and    connectable, has these qualifications:

  • Design and Manufacture follow IEC 61439-1&2.
  • Maximum busbar of 6300A.
  • Draw-out, fixed ACB and 3 or 4 pole up to 6300A.
  • Rated voltage up to 690V.
  • Short Circuit withstand strength : 85kA/3s
  • Form up to Form 4B
  • Incoming/outgoing access top, bottom, rear, front.
  • Flexible & expandable.
  • Possible to integrate with any communication.
  • Comprehensive Support by design, project & service team.
Rated operational voltage (Ue) 415V / 690V
Rated Frequency 50 / 60 Hz
Rated Current (ln) up to 6300A
Rated Diversity Factor 1
Rated insulation voltage (Ui) Up to 690V
Rated impulse withstand voltage (Uimp) 12kV
Rated short-time withstand current (lcw) 50kA/3s ~ 85kA/3s
Rated peak withstand current 3 phases
220kA
Phase – Neutral 132kA
Rated short-time withstand current  60kA/0.5s
Effective connection between the exposed conductive R < 0.1 Ohm
Part of the assembly and the protective circuit
Clearances & Creepage distances >=14mm; >=16mm pollution degree 3
Degree Protection IP20 to IP65
