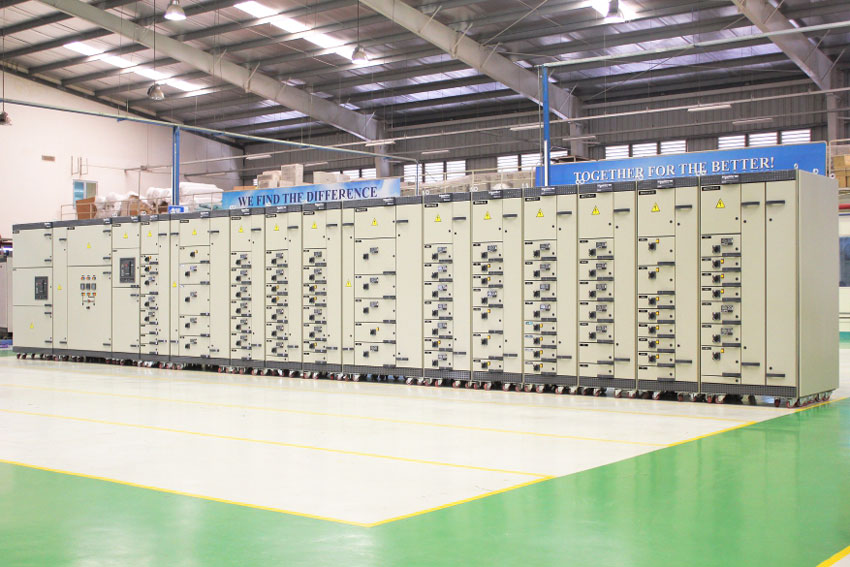

MOTOR CONTROL CENTER

The MCC – Motor Control Centres are versatile solutions for the needs of the industry even with high nominal currents.

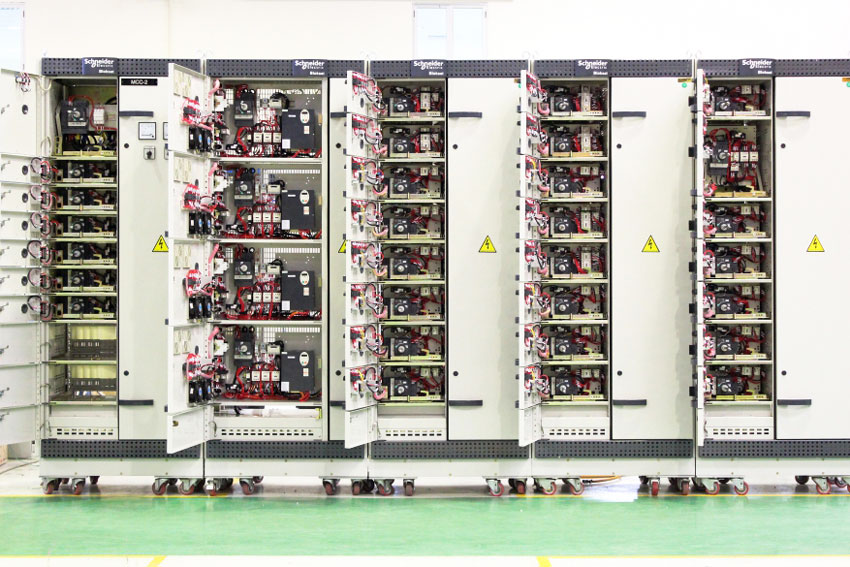

The MCC – system is used in realisation of various types of solutions for the supply and control of electrical motors. With a wide range of selection, form 2b up to 4b, the outgoing units can be withdrawable, removable or fixed. The system also includes instrumentation cabinets, integrated power factor compensation solutions and a busbar trunking system.

Our products are always delivered ready-to-install and special attention has been paid to the productivity of installation. The Hai Nam switchboards are recognised by their modern and stylish colouring: intermediate parts are graphite grey whereas the panels are beige.

Standard IEC 60439-1, IEC 60947-3
Degree of Pollution 3
Frequency 50Hz
Main Busbars up to 3200A
Degree of Protection up to 54
Segregation Form up to 4b
Material Electro- Galvanized Steel Sheet
Metal Sheet Thickness 2mm
External Surface Protection Epoxy Powder Polymerized at High Temperature
Painting Thickness more than 50 micro mm
Rated Insulation Voltage 1000VAC
Rated Operational Voltage 690VAC
Rated Impulse Withstand Voltage 12kV
Rated Peak Withstand Current 143kA
Rated Short-time Current 65kA / 1s
Standard Color RAL 7032, 9002
Standard Dimension
  • 2090H x 800W x 1080D
  • 2090H x 800W x 1280D
  • 2090H x 800W x 1480D
